NEJE Master 2 2S Max 30W 40W 80W High Power Laser Engraving Machine GD32 MCU Wood Router Desktop Laser Engraver Cutting Machine

30W N40630 / Master 2S Max

$270.19 USD

1/6

NEJE Master 2 2S Max 30W 40W 80W High Power Laser Engraving Machine GD32 MCU Wood Router Desktop Laser Engraver Cutting Machine

$270.19 USD

≈ BTC wird geladen…

power(w) 30W N40630 40W A40630 80W A40640 20W N40620

model number Master 2S Max

SPECIFICATIONS

Cutting depth: Max 3-8mm

Engraving Speed: 0-120

Image Format: nc /dxf /bmp /jpg /png etc

Image Size: 2000 * 2000 pixels / 0.075mm point distance

Input Voltage: AC100-240V, 50/60Hz

Laser Wave Length: 450nm

Main Application: Cutting<8mm Medium Speed Deep Engraving

Module Input(Machine Supply Voltage): 12V 2A(30W/40W)

Optical Output Power: 7.5W/15W

Satety Protection: MEMS

Support System: windows 7/10 / android / iOS / macOS

Weight: 5.0 KG

applicable material: Acrylic,Crytal,Leather,MDF,Metal,Paper,Plastic,Plywood,Rubber,Wood

brand name: FUNDAR

cnc or not: Yes

condition: New

configuration: Stand-Alone

cooling mode: Air Cooling

engraving area: 460 x 810 mm

feature: Air-Cooled

graphic format supported: DXF,BMP,.NC\.JPG\ .PNG\ .NC\ ETC..

key selling points: APP Wireless Controller

laser source brand: NEJE

laser type: Diode

mode of operation: Continuous Wave

place of origin: Guangdong, China

warranty: 3 years

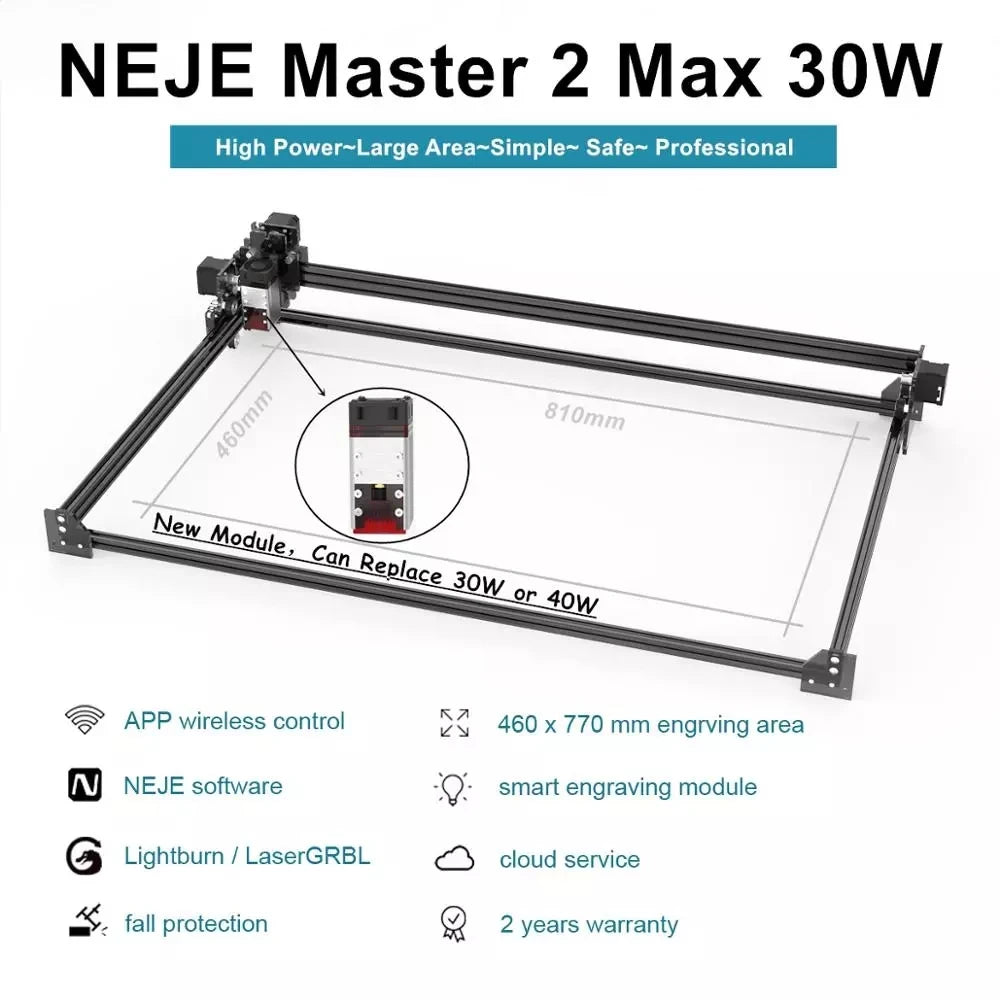

2020 NEJE Master 2 Max 30W 40W 80W Professional High Power Laser Engraving Machine Cutting Machine with Lightburn BT App Control

Features:

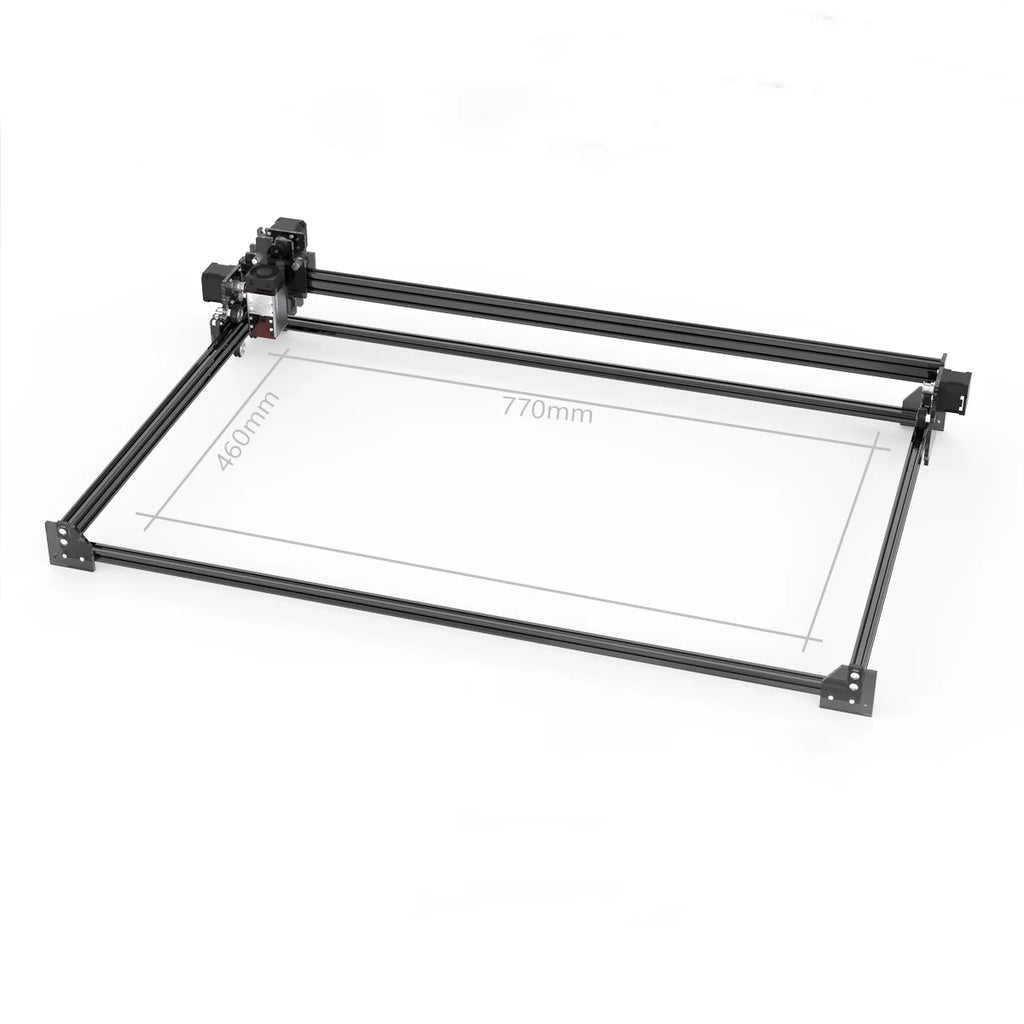

1. Larger area, 460 x 810 mm engraving and cutting area
2. 20W power module, optical power output 5.5W,

30W power module, optical power output 7.5W,

40W power module, optical power output 10W,

80W power module, optical power output 15W,

focal point 0.1mm, support engraving and cutting.
3. Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

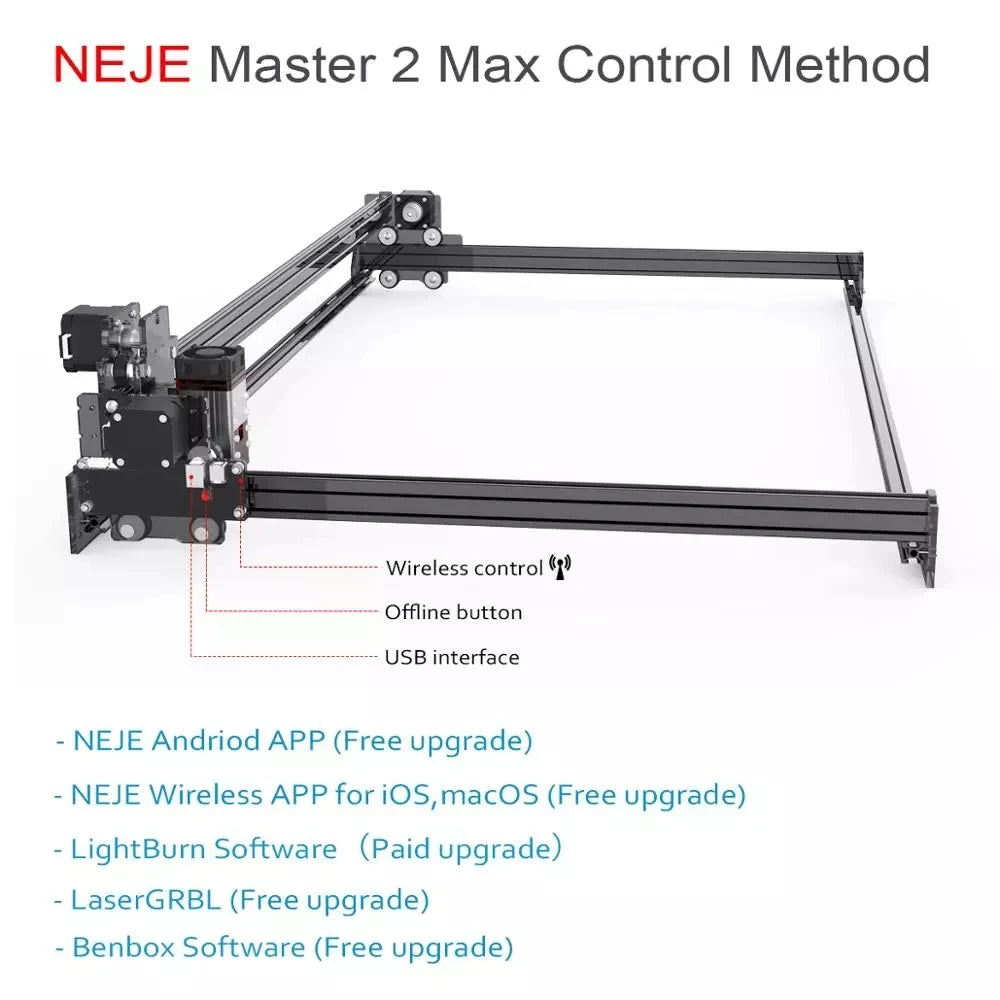

4. The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.

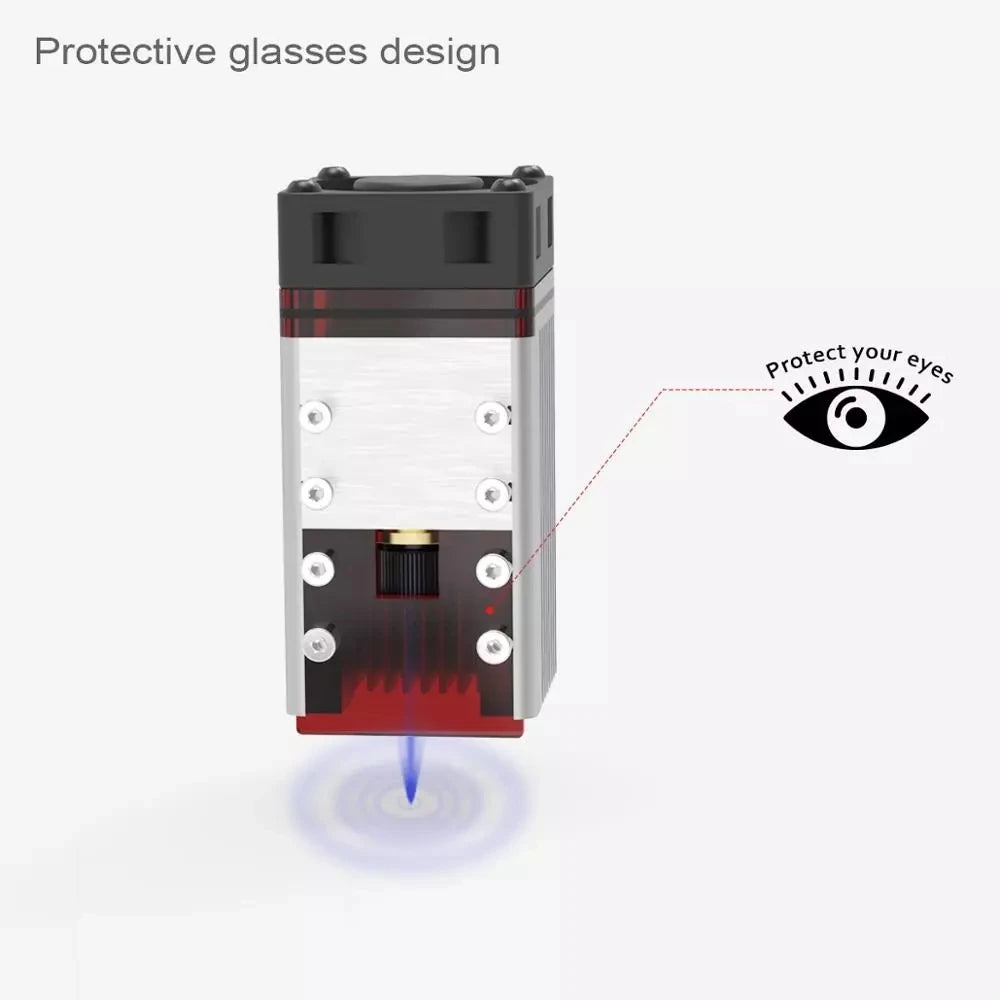

5. Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

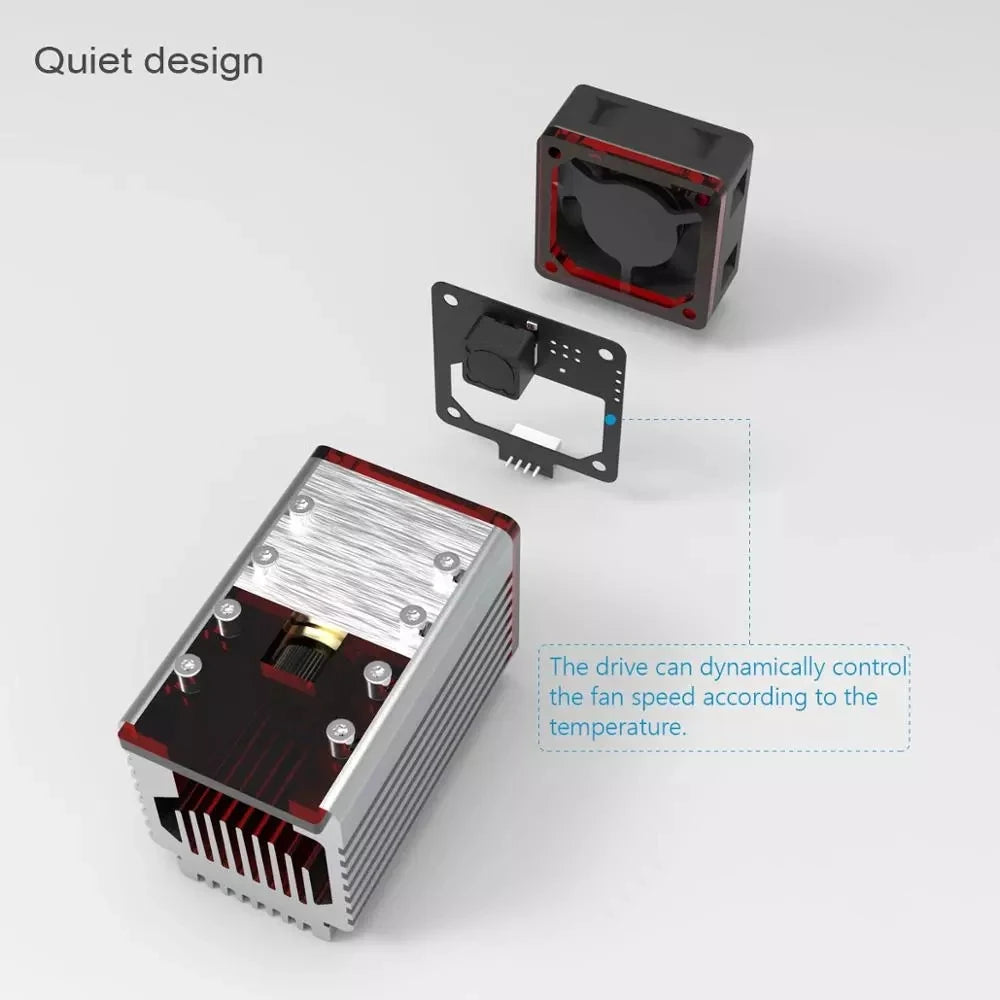

6. Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.
7. Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.

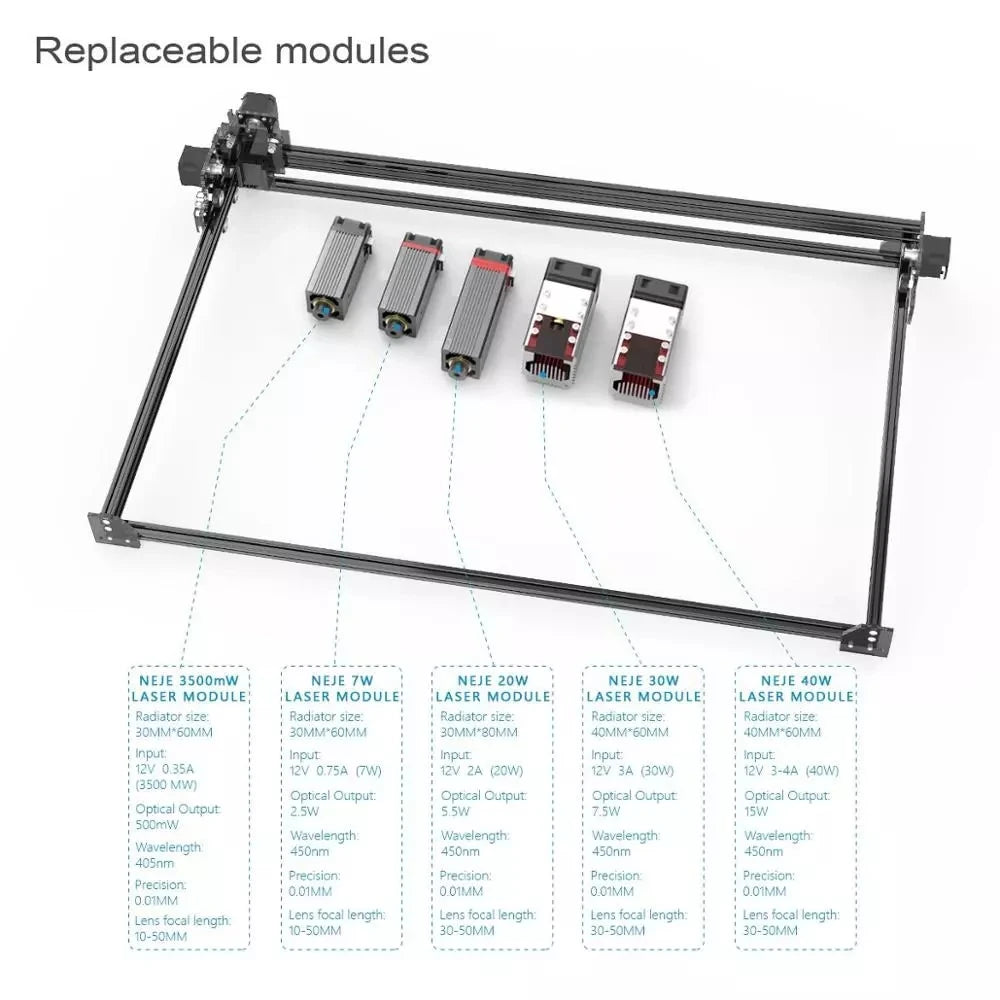

8. Support NEJE 4pin interface series modules, including 3500mw, 7W, 20W, 30W, 40W, etc.
9. The product has passed the quality control of NEJE factory. If it is a quality problem, we provide a 2-year warranty!

Specification

Model	Master 2 Max 30W/40W/80W
Module Input(Machine Supply Voltage)	12V 3A/4A
Optical Power	450nm 7.5W/10W/15W
Control Board	2 x MCU + Wireless control + MEMS
Satety Protection	MEMS
Working Size	460 x 810 mm
Pixel	2266 x 2266 px
focal point	0.1mm
Software	NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.
NEJE Software Upgrading Service	YES
NEJE Cloud Gallery	YES
NEJE Scanner function	YES
Frame material	CNC Cutting Composite plate, aluminum alloy, acrylic.
Can Engrave	MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave	Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Continue working	Unlimited
Wavelength	450nm
Beam Shape	Dot (Focusable)
Drive	Built-in
Lens Material	D-ZK
Heatsink Material	Aircraft Aluminum + Brass Shell
Luminous Color	Blue
Input Voltage	AC100-240V, 50/60Hz
Output Voltage	DC12V, 3A
Image Format	.bmp \ .jpg \ .png \ .nc \ .dxf \ etc..
Plug Type	EU / US (Optional)

Items can be carved including: alumina oxide, mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc. please take notice that the laser head is easily-consumed products ,so we promise to supply again within three month if the laser head is Inhuman damage.so if you laser head is Inhuman damage , please do not give negative comment thanks for your support.

Package List:

Laser engraving machine 1,
4060 module 1,
12V3A power supply 1,
European standard adapter 1,
Manual 1,
Red glasses 1,
(Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5, large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)

Detail

Note(Please pay attention)

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects,Pay attention to fire,Pay attention to pets when working!
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
